Products Description

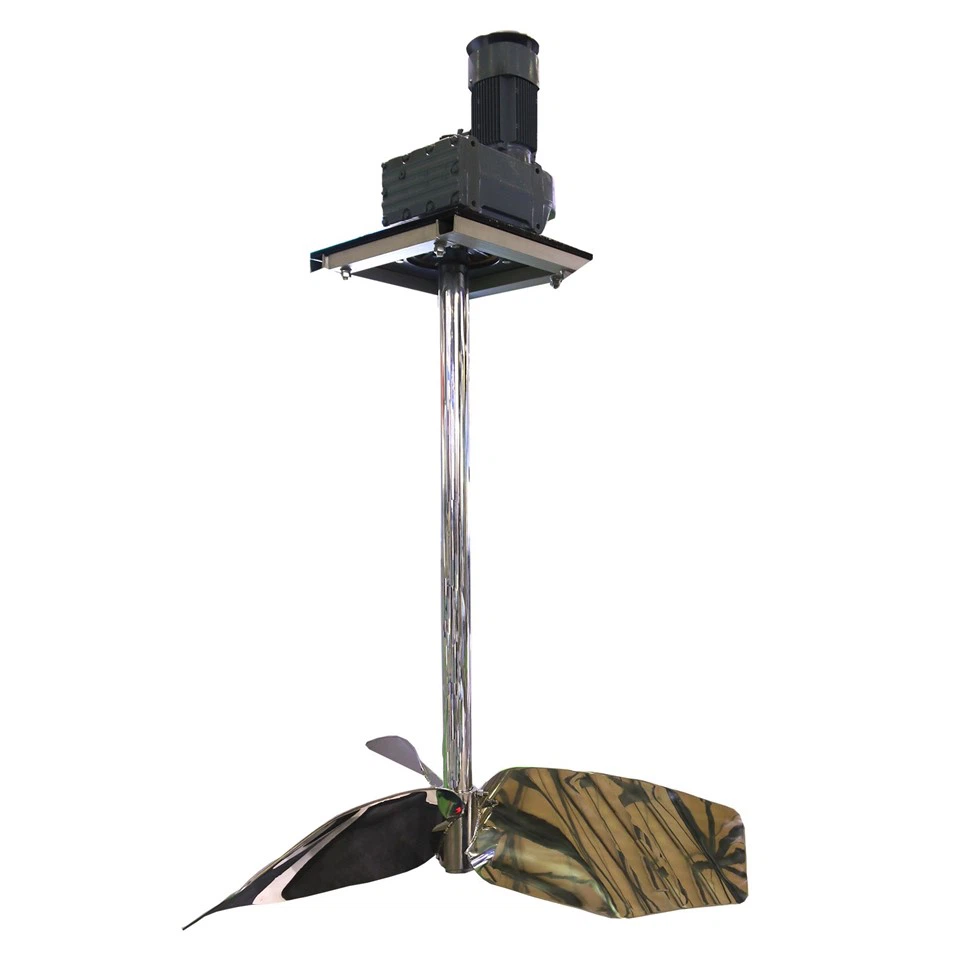

The Vertical Turbine Mixer is a high-efficiency vertical turbine mixer suitable for water treatment, chemical and industrial mixing processes. It can achieve rapid and uniform mixing, improving material processing efficiency and effluent water quality.
Model Description
Example:
VT4200/4.9/3-M4/2.2-S
VT – Series designation
4200 – Propeller diameter (mm)
4.9 – Propeller rotating speed
3 – Number of propeller blades
M – Motor configuration
4 – Motor pole number
2.2 – Motor power (kW)
S – Material for submerged components
• S = 0Cr19Ni9 stainless steel
• P = Carbon steel with plastic lining
• G = Carbon steel with rubber lining
• FRP = Carbon steel with fiberglass lining
Product Features
High-Efficiency Mixing Performance
The vertical turbine impeller design ensures high-speed liquid circulation and uniform mixing.
Durable Motor
Utilizing a 3-phase 380V, 50Hz motor with S1 continuous operation mode, IP55 protection rating, and Class F insulation, it ensures long-term stable operation and reduces maintenance costs.
Wide Applicable Conditions
Suitable for ambient temperatures from -10 to 40℃, media densities less than 1.05 × 10³ kg/m³, and pH values from 5 to 9.
Technical Data
| Power supply | 3φ 380V 50Hz |
| Working mode | S1 |
| Protection level | IP55 |
| Insulation level | F |
| Ambient temperature | -10-40℃ |
| Density | Less than 1.05×103kg/m3 |
| PH scope | 5-9 |
Performance Parameters
|
Model |
Impeller diameter(mm) |
Speed(r/min) |
Motor power(kw) |
Service scope(m) |
Weight(kg) |
|
VT |
≤1000 |
≤30 |
≤1.1 |
2-4 |
≤140 |
|
≤1500 |
≤30 |
≤1.5 |
3-6 |
≤180 |
|
|
≤2000 |
≤30 |
≤2.2 |
4-7 |
≤250 |
|
|
≤2500 |
≤20 |
≤3 |
5-8 |
≤500 |
|
|
≤3000 |
≤20 |
≤4 |
6-10 |
≤600 |
|
|
≤3500 |
≤20 |
≤5.5 |
7-12 |
≤700 |
|
|
≤4000 |
≤20 |
≤7.5 |
8-14 |
≤800 |
|
|
≤4500 |
≤20 |
≤15 |
12-20 |
≤1200 |
