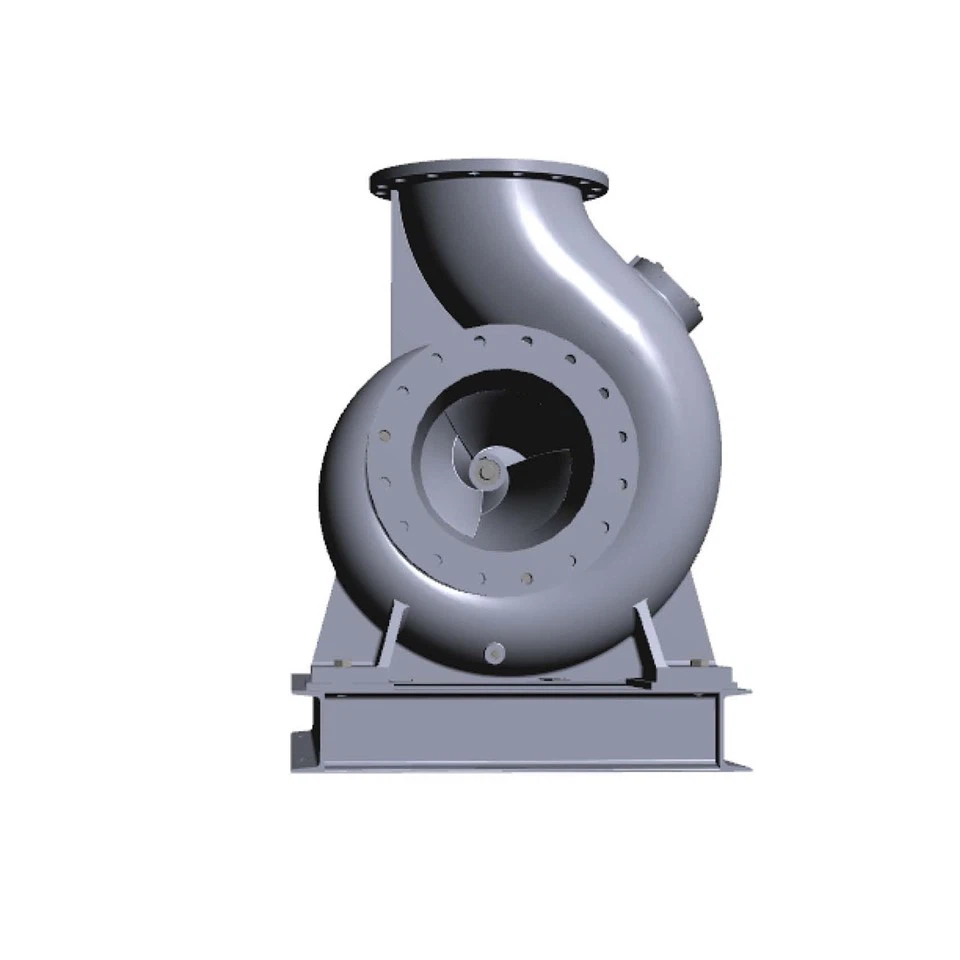

Horizontal Coupling Sewage Pump

The Horizontal Coupling Sewage Pump, with its volute pump body design and dual-channel impeller structure, achieves high efficiency, wear resistance, and smooth passage of solid particles, making it suitable for conveying urban sewage, industrial wastewater, and liquids containing solid particles.

For example:

LS150.280AD-M4/15V-DG

LS - Series name

150 - Nominal diameter (mm), e.g., DN150

280 - Impeller code

A - Additional impeller code, used to distinguish variations (A, B, C)

D - Impeller type: B = Blade impeller; D = Double-channel impeller

M - Motor configuration

4 - Motor stage

15 - Motor power (kW)

V - Motor type: V = Frequency conversion; E = Explosion-proof; ordinary motors are not specially marked

D - Impeller material: D = QT500; G = HT200; S = 0Cr19Ni9; O = other materials

G - Pump body material: D = QT500; G = HT200; S = 0Cr19Ni9; O = other special materials

Wear-resistant and durable

The pump body and sealing rings are made of replaceable cast bronze, offering excellent wear resistance.

Highly reliable bearing system

Equipped with three-disc fully enclosed ball bearings, providing high load-bearing capacity and excellent heat dissipation.

Easy to maintain

The front and rear portal frame design allows for easy disassembly and maintenance of critical components such as the impeller and shaft seal.

Production Capacity: 15,000㎡ factory area, 5 production lines, annual output of 10,000 water pumps and 5,000 blowers.

Quality Assurance: ISO 9001 and CE/TUV certified, full-process quality control, 100% finished product qualification rate.

Technology R&D: 20 engineers and 10 technicians, 15 patents, supporting new product development and non-standard customization.

Supply Chain and Inventory: 50+ long-term suppliers, key components manufactured in-house, common raw material inventory ≥3 months of production.

After-sales Service: Provides 24-hour technical response, 72-hour on-site service, and long-term maintenance support.

Different models have slightly different structures, we can produce different materials on request.
