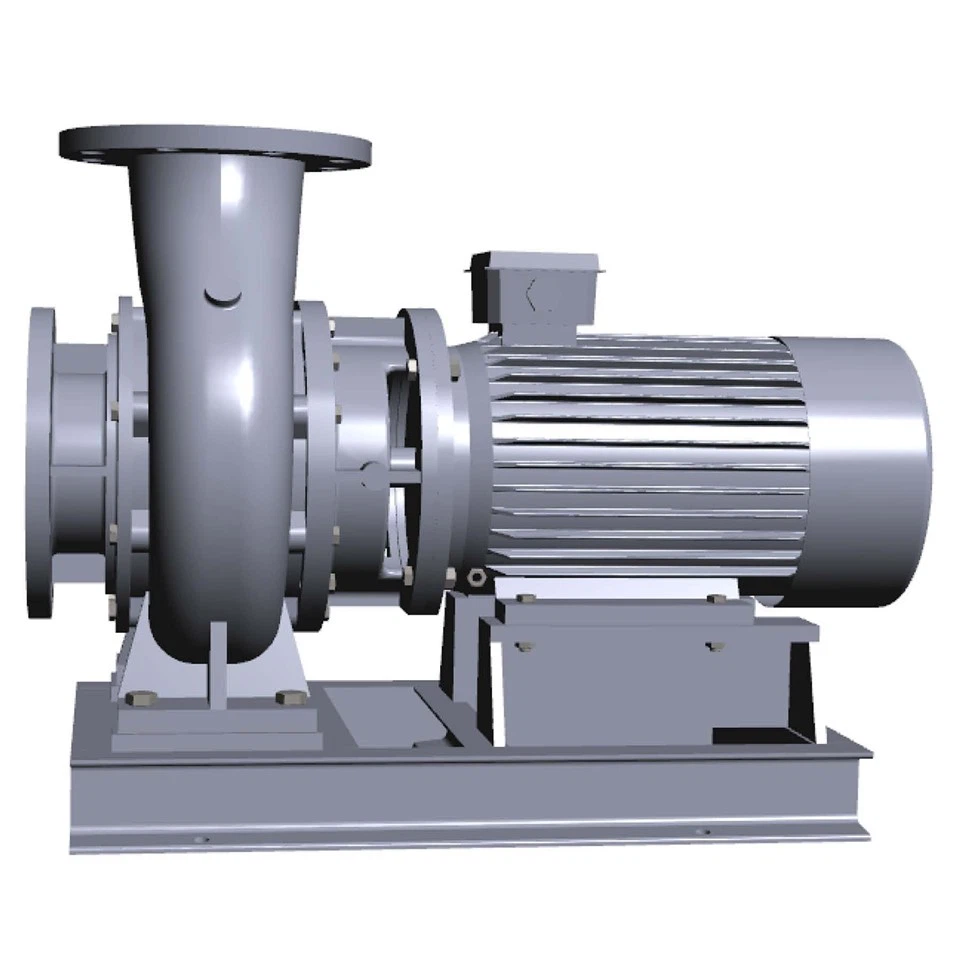

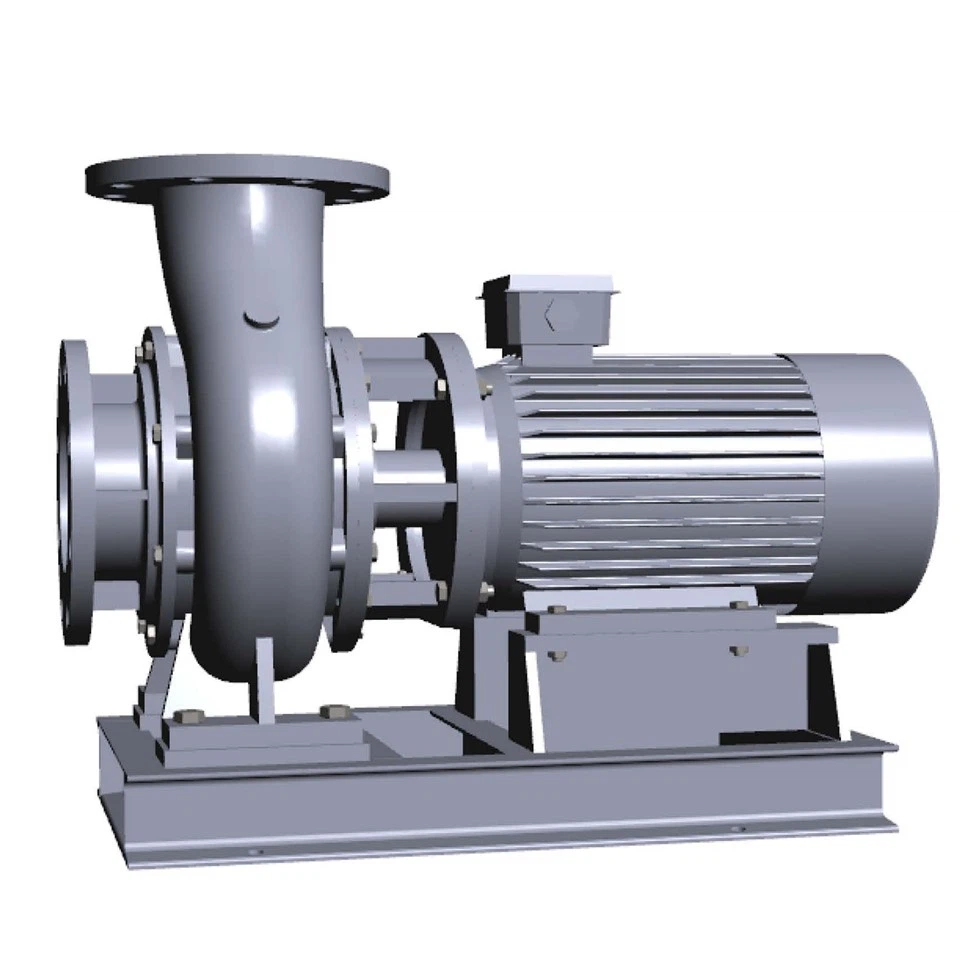

Horizontal Monoblock Sewage Pump

The Horizontal Monoblock Sewage Pump is used for the continuous discharge of municipal, industrial and domestic sewage. It adopts a compact integrated structure and anti-clogging technology, which makes it reliable in operation, highly passable and low in maintenance.

For example:
NHS50.125A-M2/1.5V-AG-C

NHS - Series name
50 - Nominal diameter (mm), e.g., DN50
125 - Impeller code
A - Impeller code suffix (A, B, C indicate different impeller variants)
M - Motor component identifier
2 - Motor stage
1.5 - Motor power (kW)
V - Motor type: V = Variable-frequency motor; E = Explosion-proof motor; standard motors are unmarked
A - Impeller material: A = Alloy steel; S = 0Cr19Ni9; O = Other materials
G - Pump body material: D = QT500; G = HT200; S = 0Cr19Ni9; O = Other materials
C - Cutter configuration: C = With cutter head; N = Without cutter head

Low clogging rate

The semi-open spiral impeller combined with a release groove structure quickly discharges fibers and solid impurities, significantly reducing the clogging rate.

Cutting function available

Can be equipped with a hardened cutting impeller and cutting head to effectively shred cloth strips, soft plastics, and other debris.

Reliable sealing

Uses a durable mechanical seal to ensure no wastewater leakage.

Stainless steel impeller

Standard configuration includes a stainless steel impeller, which is corrosion-resistant and wear-resistant.

Production Capacity: 15,000㎡ factory area, 5 production lines, annual output of 10,000 water pumps and 5,000 blowers.

Quality Assurance: ISO 9001 and CE/TUV certified, full-process quality control, 100% finished product qualification rate.

Technology R&D: 20 engineers and 10 technicians, 15 patents, supporting new product development and non-standard customization.

Supply Chain and Inventory: 50+ long-term suppliers, key components manufactured in-house, common raw material inventory ≥3 months of production.

After-sales Service: Provides 24-hour technical response, 72-hour on-site service, and long-term maintenance support.
