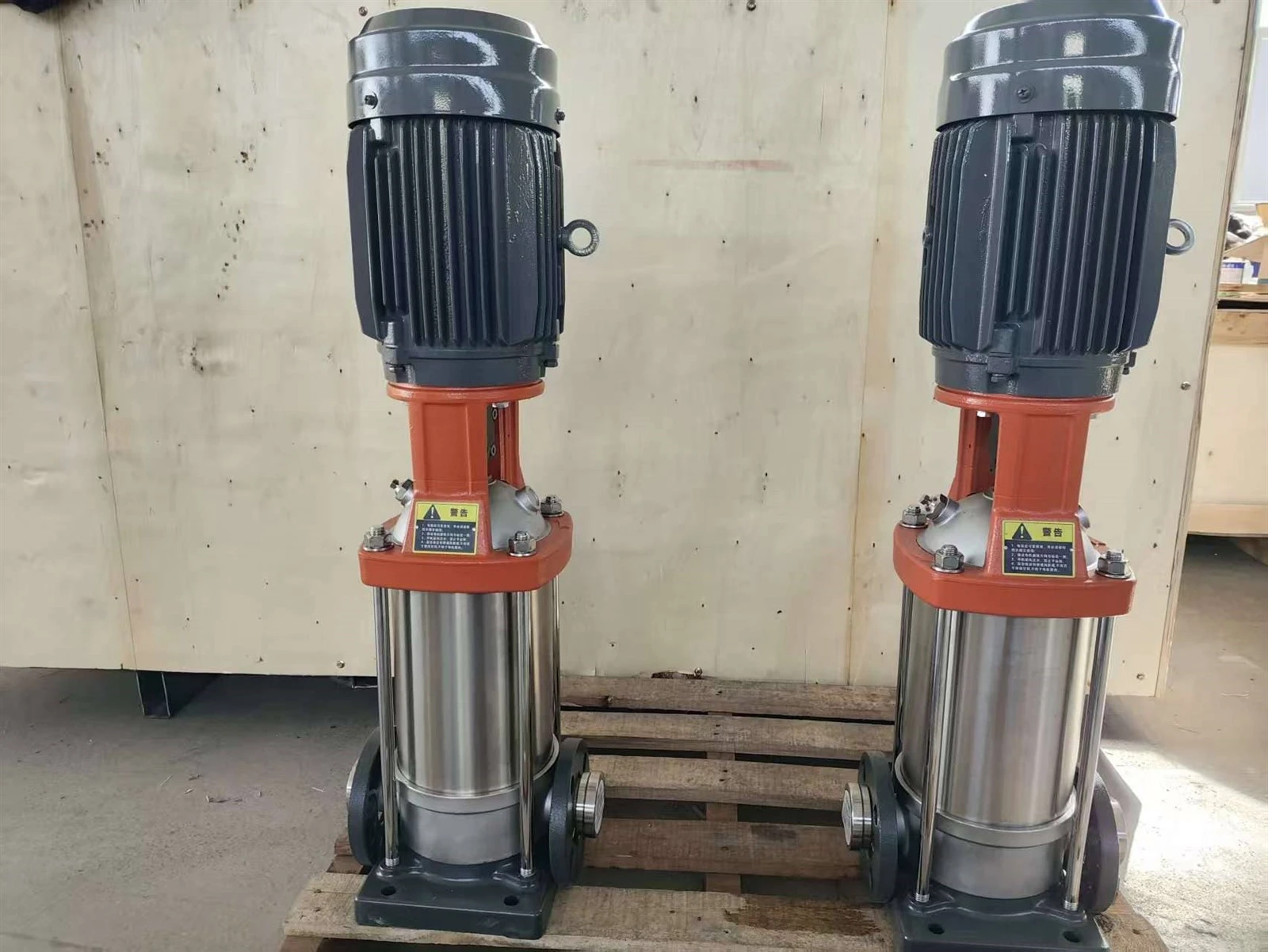

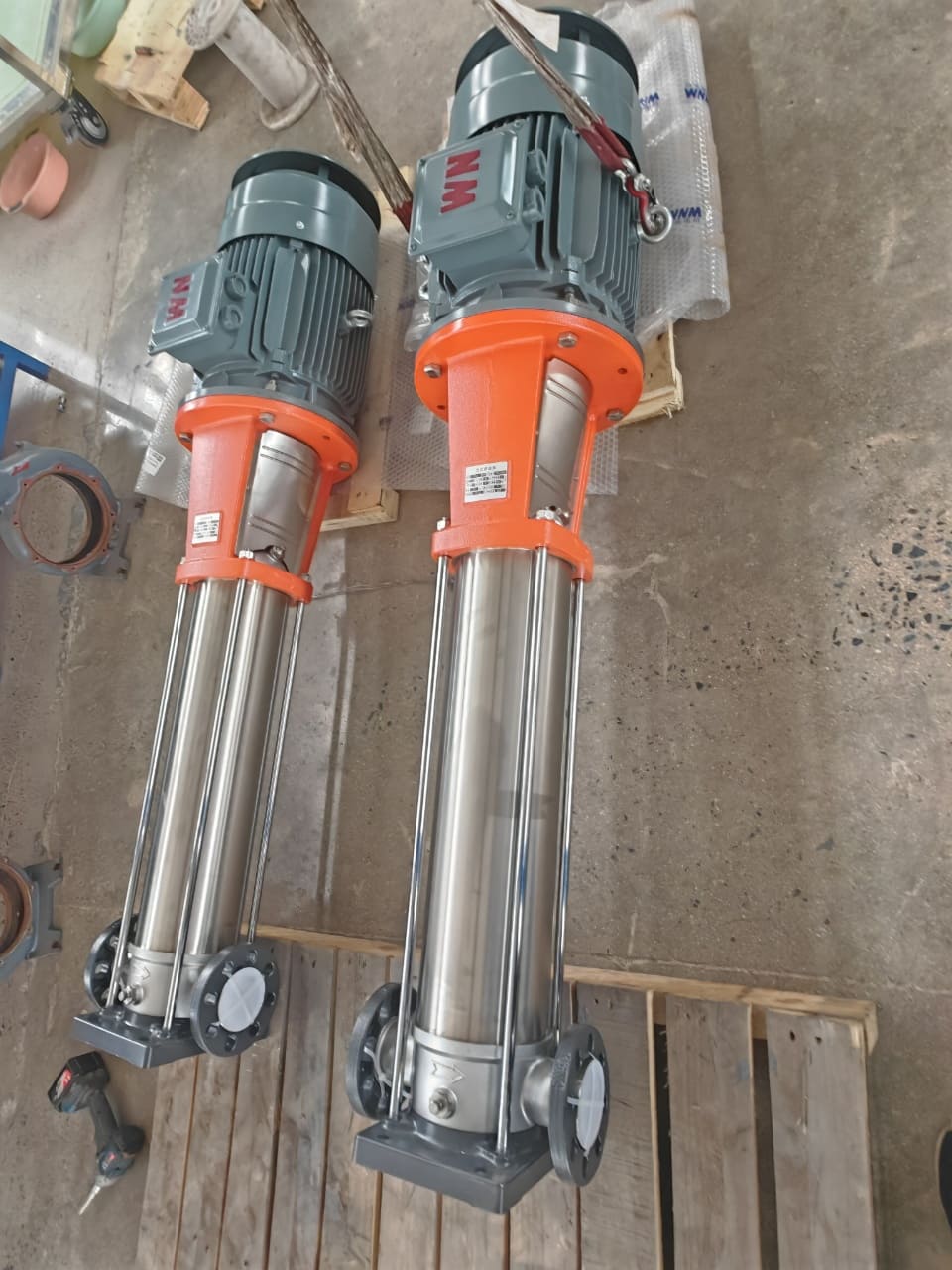

Vertical Multistage Pumps We Supplied
Vertical multistage pump is a vertical single-suction multistage centrifugal pump. The pump shaft, impellers and guide vanes are installed vertically in series inside the pump body. Driven by a standard motor, it boosts liquid pressure step by step through each stage of impellers.
This pump adopts a space-saving vertical design, with advantages of small footprint, high efficiency, reliable performance, low vibration and long service life. It is mainly used for clean water and similar low-viscosity liquid delivery.
Common applications include: municipal water supply, high-rise building water pressurization, industrial circulating water system, boiler feed water, water treatment, fire-fighting water supply and agricultural water delivery.
1. Working Principle
The vertical multistage pump belongs to the rotodynamic pump family. When operating, the high-speed rotating impellers transfer kinetic energy to the liquid. The liquid flows through multi-stage impellers and diffusers in sequence, and its pressure is continuously increased stage by stage to realize long-distance delivery and high-lift water supply. All flow components are arranged vertically, making the overall layout neat and reasonable.
2. Structural Features
Vertical inline structure, easy for pipeline installation and maintenance.
Stainless steel flow parts, excellent corrosion resistance, suitable for pure water and industrial water.
Mechanical seal design, no leakage, stable sealing performance.
Standard IE series motor, high power efficiency, low energy consumption.
Balanced rotor structure, low vibration and noise during continuous operation.
3. Main Applications
Domestic water supply & pressurization for high-rise buildings, communities and hotels
Industrial process water, circulating water and boiler feed water
Water treatment industry: RO system, water purification and water distribution
Fire water supply system for industrial and civil buildings
Farmland irrigation and remote water delivery
4. Performance Advantages
High head, wide flow range, high operational efficiency, easy installation and little maintenance. It is an ideal energy-saving equipment for liquid pressurization and transportation.
